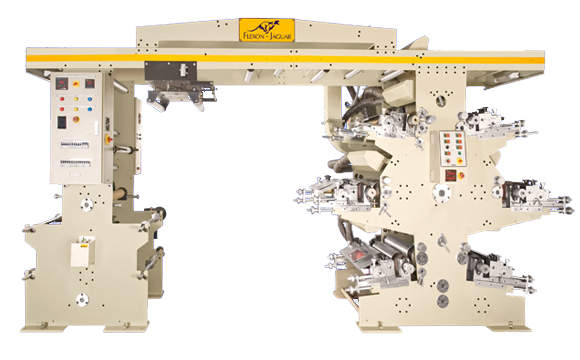

Flexon Jaguar [C. I. Style] 6 Color Flexon Printing Press

Salient Features

  • Single Bull Gear Which Drives All Six Stations .
  • Maximum Printing Speed 80 mtrs / min.
  • Better Registration.
  • Higher Production.
  • Excellent Printing.
  • Reduction of wastage.
  • Good Halftone Result.
  • Inching facility.
  • Auto stop.
  • Temperature controller.
  • Unique Drying System: Four no. of blowers, Re-circulation of hot air which provides for expelling calculated quantity of air, to control solvent level and yet achieve faster drying coupled with tremendous saving of energy.
  • Auto Tension Control System(4 Drive System)

Optional

  • Ceramic Anilox Rollers.
  • Enclosed Doctor Blade Chamber.
  • Ink Circulation System.
  • Continuous Rotation of Anilox Rollers when the press is stopped.
  • Air Shafts.
  • Safety Chucks.
  • Touch Screen.

Technical Specifications

Web Width 610 MM(24 inch )
Print Width 560 MM(22 inch )
Print Repeat 240 MM - 770 MM ( 8 inch - 32 inch)
Print Speed 80Mtr.s/minute Maximum
Power Equipment Main Motor 3 hp ac
Blowers 2 hp ac + 1 hp ac + 2nos 0.5 hp ac
Web Aligner 0.5 hp ac
Heating Load 14.4 kw
Floor Space Length 7mtrs
Width 2.5 mtrs
Height 3.5 mtrs
