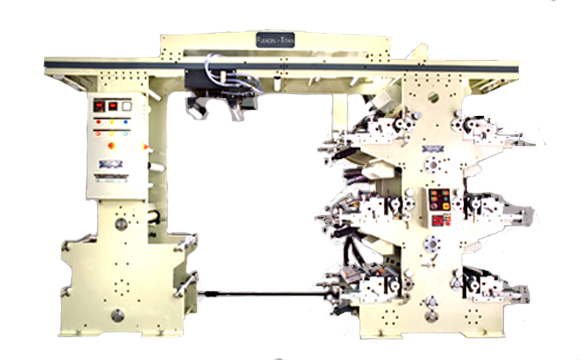

Flexon Titan [Regular] 6 Color Flexo Printing Press
Salient Features
- Better Registration.
- Excellent Printing.
- Good Halftone Result.
- Inching facility.
- Auto stop.
- Temperature controller.
- Unique Drying System: Re-circulation of hot air which provides for expelling calculated quantity of air, to control solvent level and yet achieve faster drying coupled with tremendous saving of energy.
Optional
- Ceramic Anilox Rollers.
- Enclosed Doctor Blade Chamber.
- Ink Circulation System.
- Continuous Rotation of Anilox Rolls when the press is stopped.
- Tension Controls system(4 Drive System).
Technical Specifications
| Web Width | 610 MM( 24 inch ) | |
| Print Width | 560 MM( 22 inch ) | |
| Print Repeat | 210 MM - 1000 MM (8 inch - 40 inch) | |
| Print Speed | 65 Mtr.s/minute Maximum | |
| Power Equipment | Main Motor | 3 hp ac |
| Blowers | 2 hp ac + 0.5 hp ac | |
| Web Aligner | 0.5 hp ac | |
| Heating Load | 12 kw | |
| Floor Space | Length | 6 mtrs |
| Width | 2.5 mtrs | |
| Height | 3.5 mtrs |
