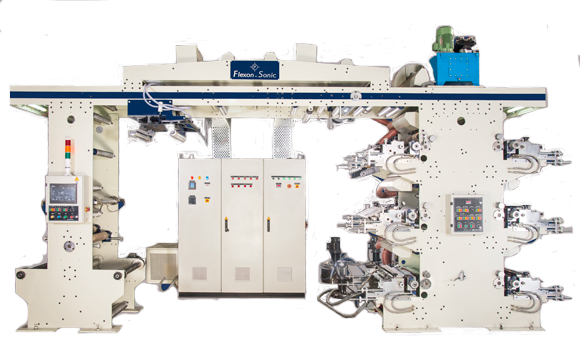

Flexon Sonic 6 Color Flexo Printing Press

Salient Features

  • Max printing speed 140 mtrs / min.
  • Better Registration
  • Excellent Printing
  • Good Halftone Result
  • Higher production
  • Inching facility
  • Auto stop
  • Temperature controller
  • Unique Drying System: Four no. of blowers, Re-circulation of hot air which provides for expelling calculated quantity of air, to control solvent level and yet achieve faster drying coupled with tremendous saving of energy
  • Auto Tension Control System(4 Drive System)
  • Ceramic Anilox Rollers
  • Enclosed Doctor Blade Chamber
  • Ink Circulation System
  • Continuous Rotation of Anilox Rollers when the press is stopped
  • Air Shafts
  • Safety Chucks
  • Touch Screen

Technical Specifications

Web Width 610 MM
Print Width 560 MM
Print Repeat 240 MM - 1000 MM (8 inch - 40 inch)
Print Speed 120 Mtr.s/minute Maximum
Power Equipment Servo Motor 12 kw@RPM 2000
Blowers 3 hp ac, 1 hp ac, 2 Nos. 0.5 hp ac
Web Aligner 0.5 hp ac
Tension Control System 6 hp ac
Ink Pumps 3 hp ac
Continuous Rotation of Anilox Rollers 3 hp ac
Heating Load 15 kw
Floor Space Length 7 mtrs
Width 3.5 mtrs
Height 4 mtrs
